SMT Welding
EDADOC PCBA headquarters is located in Shenzhen, with branches established in Shanghai, Chengdu, Changsha Zhuhai and Tanjin. Our nationwide chain of operations has locations convenient for many of our customers. There are nearly 60 SMT production lines, equipped with new Fuji NXIII, AIMEX, XPF full-automatic solder paste printing machines, 12-temperature zone lead-free nitrogen reflux furnaces, wave soldering and other high-end equipment, AOI, 3D SPI, 3D X-RAY, intelligent first article testers, full-automatic plate splitters, crimping machines, BGA rework stations, and three-proofing paint. Our focus is on high-quality R&D of proofing, small and medium-sized SMT batch processing, assembly and other services.
Shenzhen
Shanghai
Chengdou
Changsha
Patch Advantages
High-Speed Delivery with Our National Chain of Factories
Delivery (within China) as fast as 8 hours
New FUJI Chip Mounter and Other High-End Equipment
Nearly 60 SMT Production Lines
Minimum Mounting:03015/01005/0201
Provide Full BOM Component Sourcing
Production Equipment
EDADOC SMT factories maintain constant temperature and humidity, with central air conditioning, air shower rooms, and anti-static treatment facilities. They are also equipped with new Fuji XPF, NXT3, automatic solder paste printing machines, 12-temperature zone nitrogen reflux furnaces, wave soldering machines, AOI/SPI/XRAY/intelligent first article testers, etc. More>>

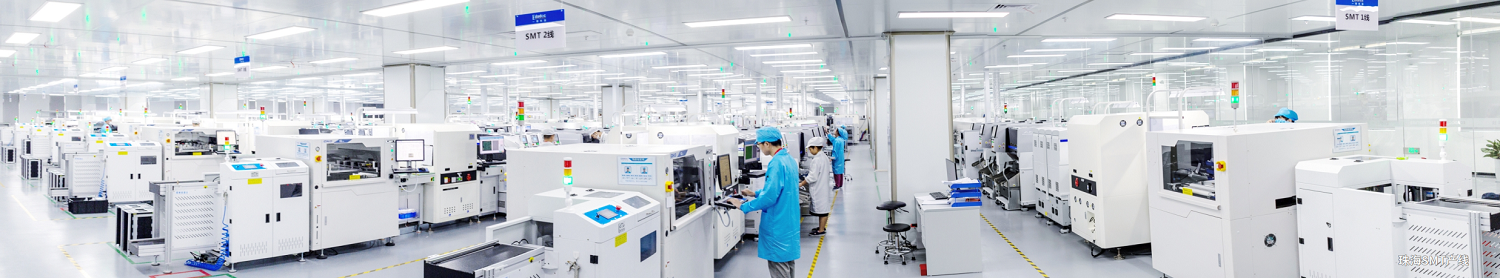

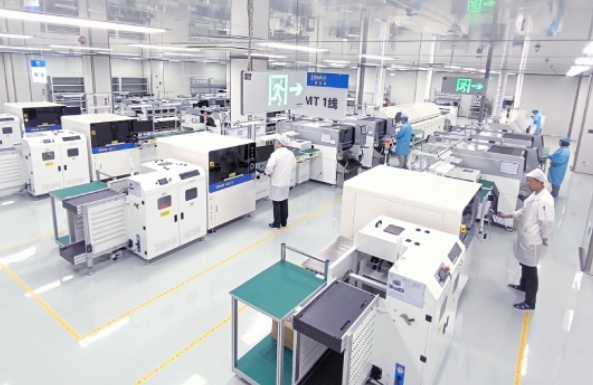

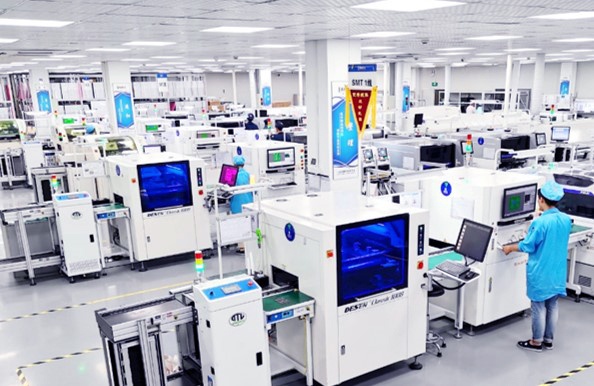

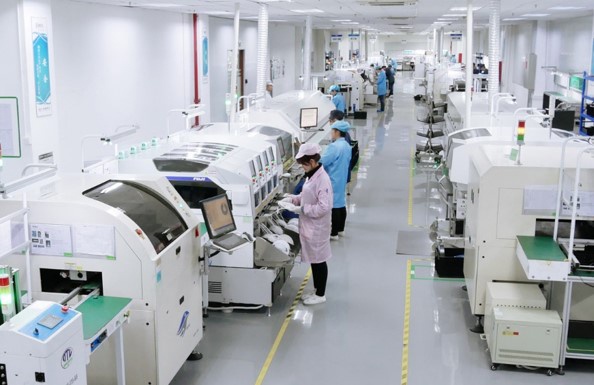

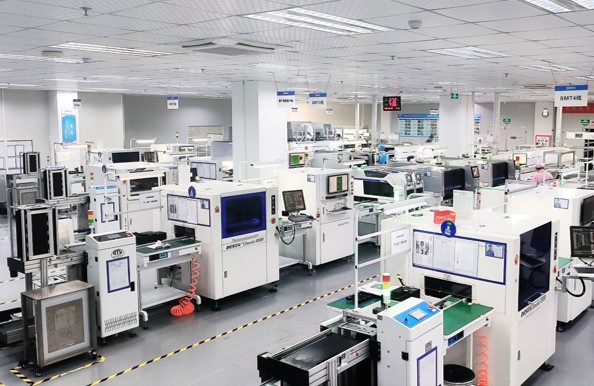

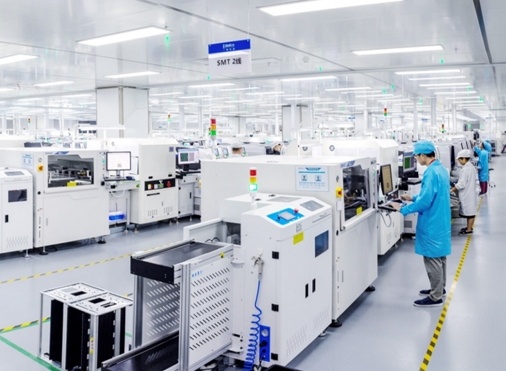

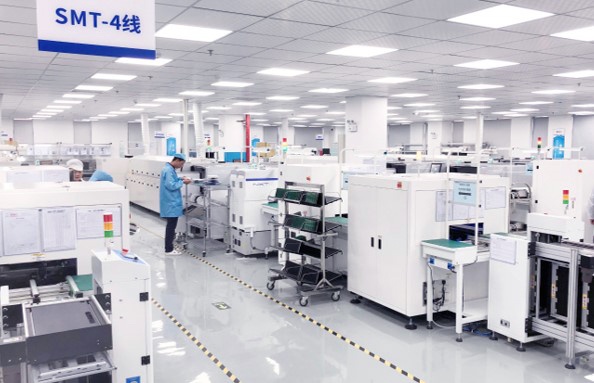

SMT production line

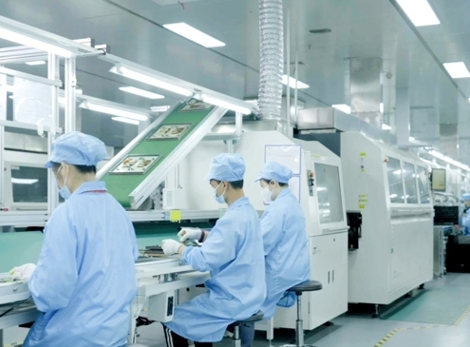

DIP production line

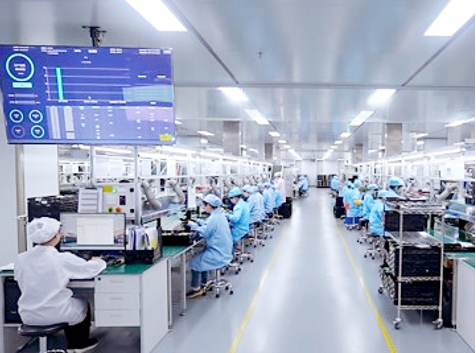

Assembly production line
Post welding production line
Three-proof paint automatic spraying production line
12 temperature zone lead-free nitrogen reflux furnace
FUJI AIMEX III

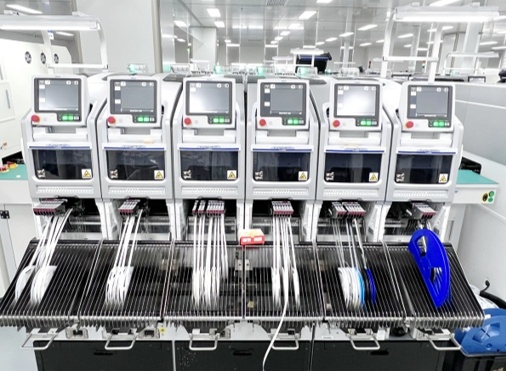

FUJI NXT III

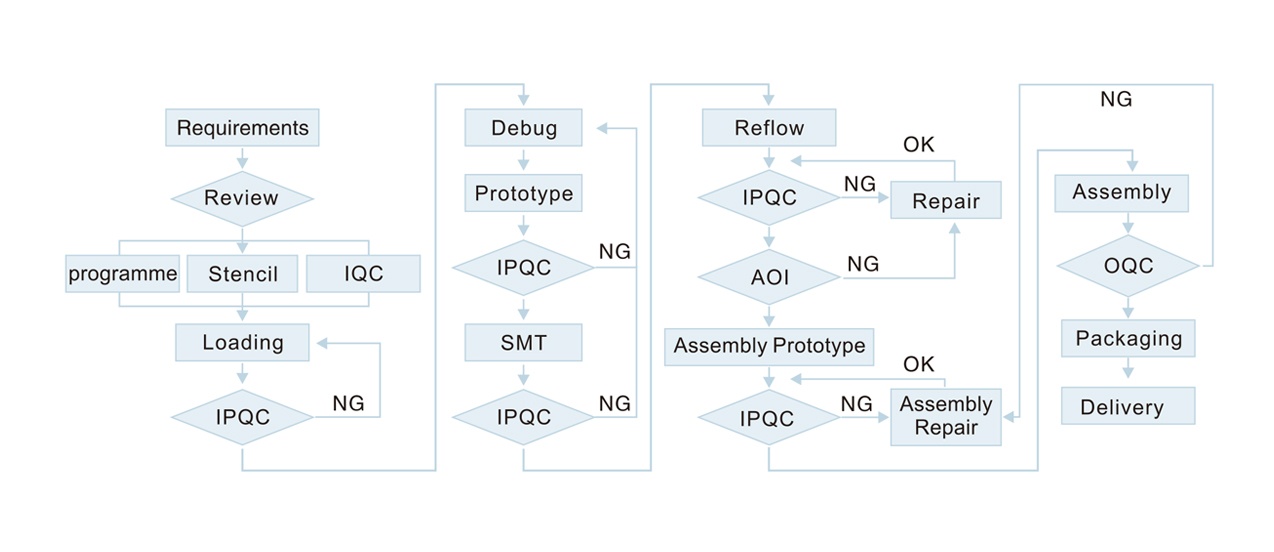

SMT Chip Processing Process
Product Display
EDADOC SMT factories have an accumulated 10,000 varieties of board production experience, with products spanning industries such as computer electronics, communications equipment, medical devices, automobile equipment, industrial control systems,and more.
Server motherboard
Communication terminal equipment motherboard
Signal processing board
Industrial control motherboard
Handheld device motherboard
