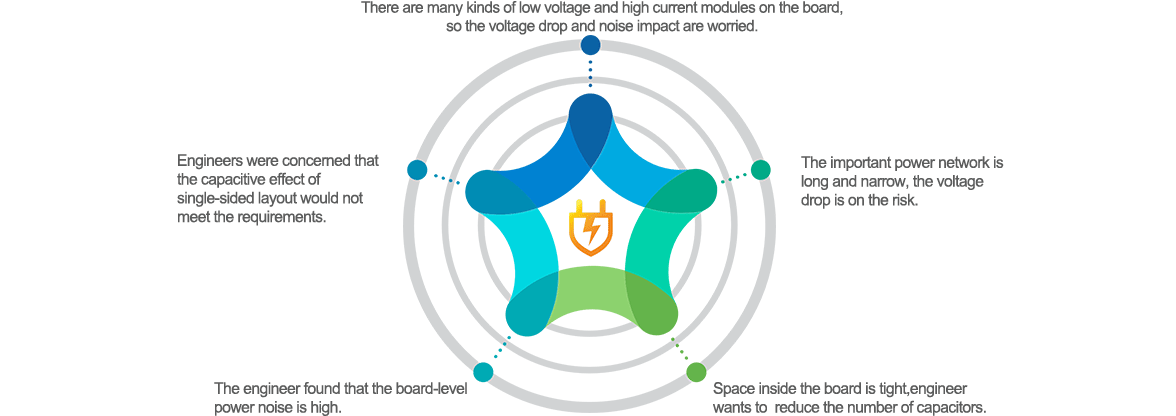

When is Power Integrity (PI) Simulation Required?
Advantages of PI Simulation Test
Product diversification
Rich engineering experience
Simulation and test comparison
Continuously improve simulation accuracy
Through simulation and accurate power supply
Test to help solve power problems

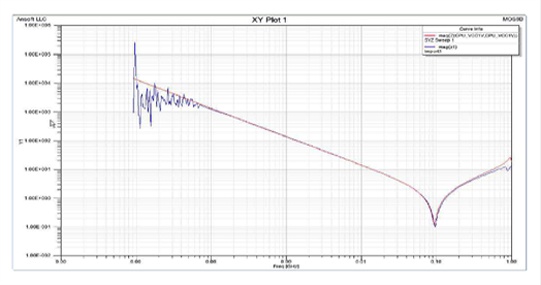

Power network impedance simulation test comparison

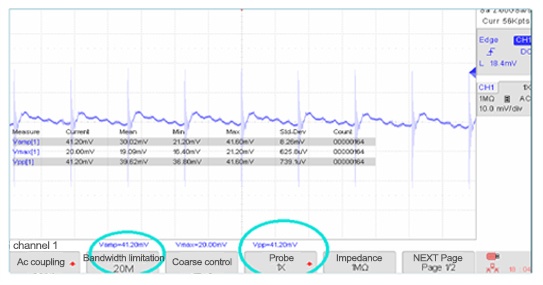

Power noise for actual test
What is the Content of Power Integrity (PI) Simulation?

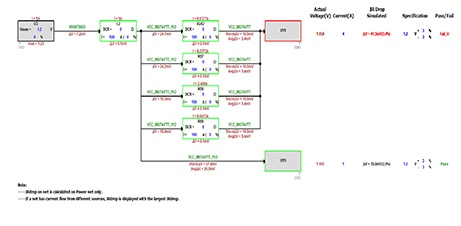

IR-Drop Simulation
-Determine whether the power voltage drop meets the requirements

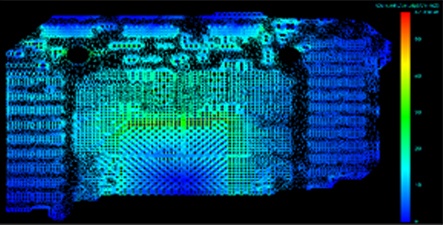

-Simulation and analysis of current density, current carrying capacity, etc.
-Simulation analysis of optimal feedback point position

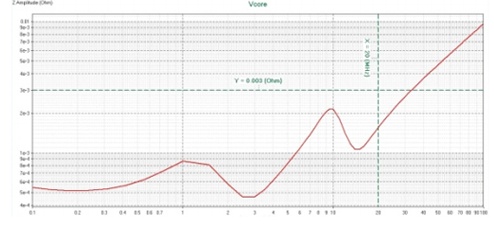

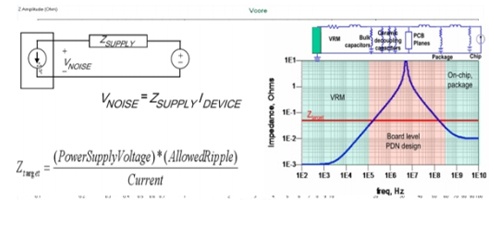

PDN Impedance Analysis
-Impedance analysis of power supply network
-Noise and ripple analysis of power supply network
-Capacitance scheme optimization; capacitance design guidance

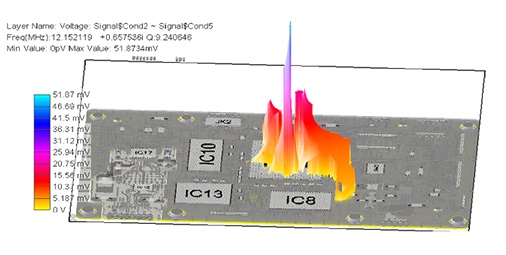

Plane Resonance Analysis
-The plane resonance simulation analysis based on EMC requirements
-The risk assessment and design optimization of plane resonance

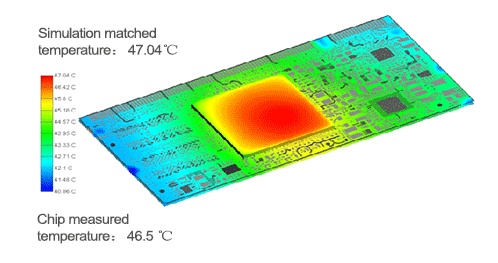

Electrothermal Collaborative Simulation
- Synergistic analysis of static Joule heat, conductor conductivity and device power consumption
- Simulation of temperature distribution of single board and PCB design optimization
